PA6 CF 3D Printing Service | Carbon Fiber Nylon Parts

FDM 3D Printing Service

PA6-CF — Carbon Fibre.
Engineering Grade.

Carbon fibre reinforced Nylon 6 is our most advanced structural FDM material. 102 MPa tensile strength, 4430 MPa stiffness, 164°C HDT, and an outstanding strength-to-weight ratio make it the top choice for load-bearing automotive, aerospace, and industrial parts.

Get Instant Quote

±0.2mm Tolerance

164°C HDT

1 Colour

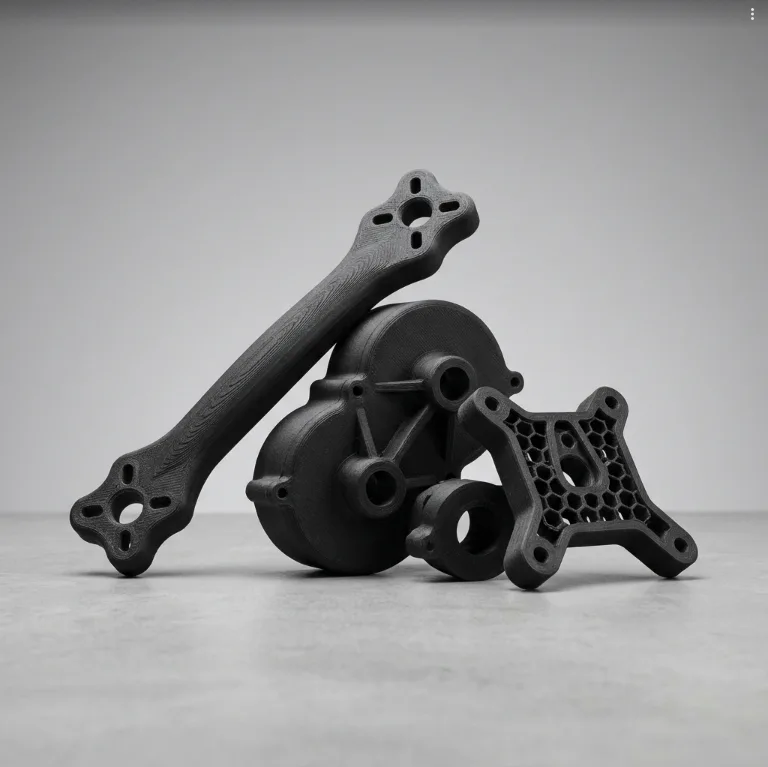

PA6-CF carbon fibre nylon 3D printed parts — professional FDM printing by Dwart Industries

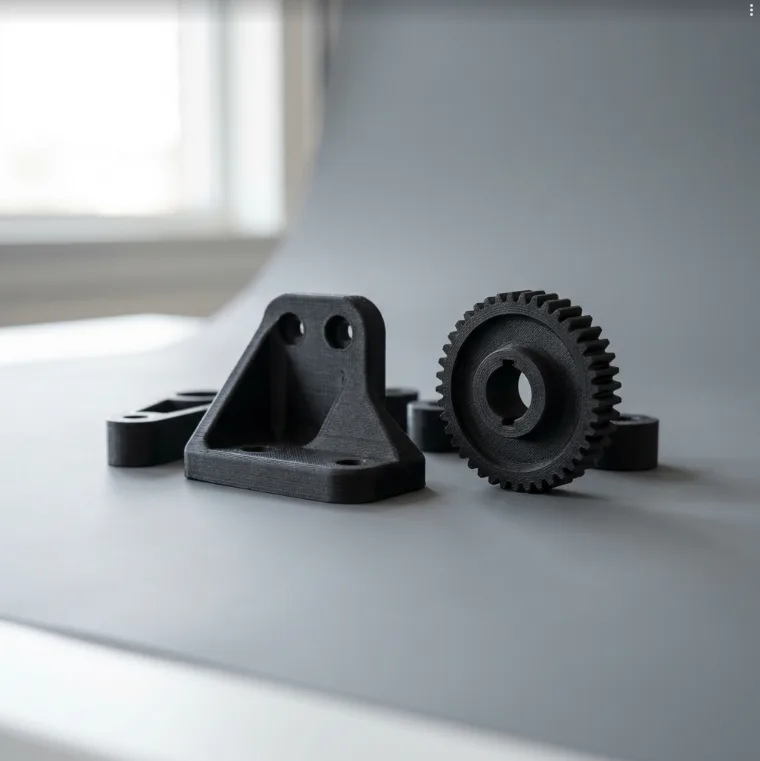

PA6-CF parts printed on professional enclosed FDM machines — exceptional stiffness, heat resistance, and structural performance for demanding engineering applications. FDM · PLA

2–5 Days Turnaround

220×220×250 mm Max Part Size

0.1 mm Min Layer Height

Pan-India Delivery

About PA6-CF (Carbon Fibre Nylon)

PA6-CF is a carbon fibre reinforced Nylon 6 filament that delivers structural performance approaching metal while remaining printable on FDM machines. The short carbon fibre reinforcement dramatically improves stiffness (4430 MPa tensile modulus, 5460 MPa bending modulus) compared to any unreinforced FDM material.

We print PA6-CF on fully enclosed, high-temperature FDM machines with chamber temperatures up to 60°C, engineering-grade build plates, and glue bed preparation. Its 164°C heat deflection temperature and 102 MPa tensile strength make it the definitive choice for automotive brackets, aerospace fixtures, industrial clamps, and structural components that must survive real-world loading.

PA6-CF requires a hardened steel nozzle due to its abrasive carbon fibre content — our machines are fully equipped with 0.4 and 0.6 mm hardened nozzles for optimal CF surface quality and dimensional accuracy.

Automotive Structural Parts Brackets, mounts, housings, and under-hood components

Load-Bearing Fixtures Industrial clamps, mounting frames, and structural brackets

Production Tooling Jigs, fixtures, drill guides, and assembly aids

Aerospace Components Lightweight structural parts, UAV frames, and housings

Robotic End Effectors Grippers, arms, and high-cycle-life structural components

Material Properties

Property	XY In-Plane	Z Through-Layer	Standard
Tensile Strength	102 ± 7 MPa	48 ± 6 MPa	ISO 527
Tensile Modulus (Stiffness)	4430 ± 310 MPa	2170 ± 230 MPa	ISO 527
Breaking Elongation	5.8 ± 1.6 %	3.7 ± 0.8 %	ISO 527
Bending Strength	151 ± 8 MPa	80 ± 7 MPa	ISO 178
Bending Modulus	5460 ± 280 MPa	2240 ± 220 MPa	ISO 178
Impact Strength — Unnotched	40.3 ± 2.5 kJ/m²	15.5 ± 1.7 kJ/m²	ISO 179
Impact Strength — Notched	13.4 ± 1.7 kJ/m²	—	ISO 179

XY = in-plane (along print layers) · Z = through-layer (perpendicular to build direction) · Values are typical; actual results depend on layer height, infill, and geometry.

Property	Value	Test Method
Density	1.09 g/cm³	ISO 1183
Melting Temperature	223 °C	DSC, 10 °C/min
Glass Transition Temperature	68 °C	DSC, 10 °C/min
Vicat Softening Temperature	212 °C	ISO 306
Heat Deflection Temp (1.8 MPa)	164 °C	ISO 75
Heat Deflection Temp (0.45 MPa)	186 °C	ISO 75
Max Continuous Service Temp.	~150 °C	—
Print Temperature	260–290 °C	—
Bed Temperature	80–100 °C	—
Max Print Speed	< 100 mm/s	—
Water Absorption Rate	2.35%	25 °C, 55% RH

Property	Value
Composition	Nylon 6 (PA6) with short carbon fibre reinforcement
Origin	Petroleum-based
Odour During Printing	Odourless
Skin Hazard	None
Chemical Stability	Stable under normal dry storage conditions
Solubility in Water	Insoluble (hygroscopic — must be kept dry)
Oil & Grease Resistance	Resistant to most oils and greases
Acid Resistance	Not resistant
Alkali Resistance	Not resistant
Note on Moisture	Hygroscopic — pre-drying at 80°C for 8–12 h is mandatory

Performance Ratings

Structural Strength / Stiffness10/10

102 MPa tensile, 5460 MPa bending modulus — best in class

Heat Resistance10/10

164°C HDT — highest of all materials we offer

Strength-to-Weight Ratio10/10

1.09 g/cm³ with metal-approaching stiffness

Surface Finish5/10

CF texture; matte grey finish; not for aesthetic display parts

Ease of Printing4/10

Needs enclosure, pre-drying, hardened nozzle, 80°C+ bed

Moisture Sensitivity3/10

Highly hygroscopic — must be stored and printed dry

Available Colours

Carbon Black

✦ 1 stock colour (Carbon Black). PA6-CF has a distinctive matte carbon fibre appearance. Contact us for bulk order enquiries.

Design Guidelines for PA6-CF

Wall Thickness

Min 1.2 mm

Aim for 2–3 mm on structural parts

Overhangs

Max 45°

Beyond 45° requires support structures

Fit Clearance

0.3–0.5 mm

For mating parts and snap-fits

Min Hole Size

2 mm dia.

Smaller holes may partially close

Text / Emboss

Min 0.8 mm

Raised text: 0.8 mm tall, 1.5 mm wide

Tolerance

±0.2 mm

Typical achieved across all geometries

Part Orientation

Load-aligned

Align layers with primary stress direction

Infill Options

5–100%

Gyroid pattern for optimal strength/weight

Post-Processing

Sand + Paint

120–800 grit, then filler primer + paint

Not sure if PA6-CF is right for your application?

For most heat-resistant applications under 90 °C, ABS or PC offers easier printability and lower cost. For flexible parts, TPU 95A is available. PA6-CF is specifically suited for applications requiring maximum stiffness, structural strength, and heat resistance simultaneously.

Common Applications

Automotive Brackets

Industrial Clamps

Production Tooling

Aerospace Parts

Structural Brackets

Robotic End Effectors

UAV Frames

Heat-Resistant Housings

End-Use Structural Parts

Load-Bearing Assemblies

Compare Similar Materials

PA6-CF

You are here Max strength & stiffness

ABS

Easier to print, lower cost ↑ Ease of printing

Transparent, high impact ↑ Optical clarity

Hyper ABS

Reduced warp ABS ↑ ABS consistency

Frequently Asked Questions

PA6-CF is the top choice when you need the highest stiffness, structural strength, and heat resistance from an FDM material. Ideal for automotive brackets, industrial fixtures, aerospace components, robotic end effectors, and any part that must carry significant loads at elevated temperatures while remaining lightweight.

The carbon fibre reinforcement in PA6-CF dramatically increases stiffness (4430 MPa vs ~2000 MPa for standard PA6) and strength while slightly reducing elongation. It also significantly improves heat resistance. The trade-off is that PA6-CF parts are stiffer and slightly more brittle than standard nylon, and require hardened steel nozzles to print.

PA6-CF is highly hygroscopic — it absorbs moisture from the air that turns to steam during printing, causing stringing, layer defects, and weakened mechanical properties. We dry all PA6-CF filament at 80°C for 8–12 hours before printing and maintain a sealed, low-humidity print environment throughout the job.

PA6-CF can be drilled, tapped, and machined. It can be lightly sanded but the carbon fibre texture means it will not achieve a smooth surface finish — it retains a distinctive dark, matte CF appearance. It cannot be painted easily due to its surface texture and chemical resistance. It bonds well with two-part epoxy for assembly.

PA6-CF has a heat deflection temperature of 164°C at 1.8 MPa — the highest of all standard FDM materials we offer. This makes it suitable for under-hood automotive use, near heat sources, in industrial machinery, and for parts exposed to repeated thermal cycling between extremes.
