Standard Resin
Standard Resin — Ultra-Fine.
Display-Perfect.
Standard Resin is our entry-level SLA resin, optimised for maximum surface detail, smooth finish, and dimensional accuracy. Perfect for miniatures, display models, prototypes, and any part where surface quality is the priority.
Get Instant Quote
About Standard Resin
Standard Resin is a 405 nm photopolymer formulated for high-precision SLA printing. With a tensile strength of 36–53 MPa, flexural strength of 59–70 MPa, and a Shore hardness of 79D–84D, it delivers a rigid, smooth-surfaced part that captures fine geometry with exceptional fidelity.
We print your Standard Resin parts at layer heights down to 0.05 mm on professional LCD/SLA machines, achieving surface finishes that rival injection moulding for display applications. Its ~1.195 g/cm³ density and ~7.1% volume shrinkage are compensated in our print profiles for accurate dimensional output.

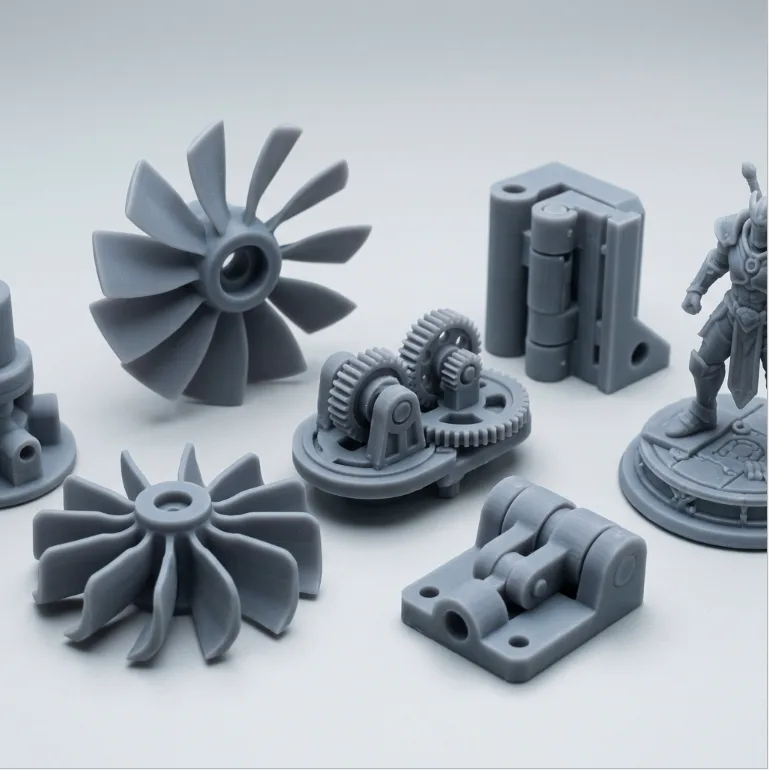

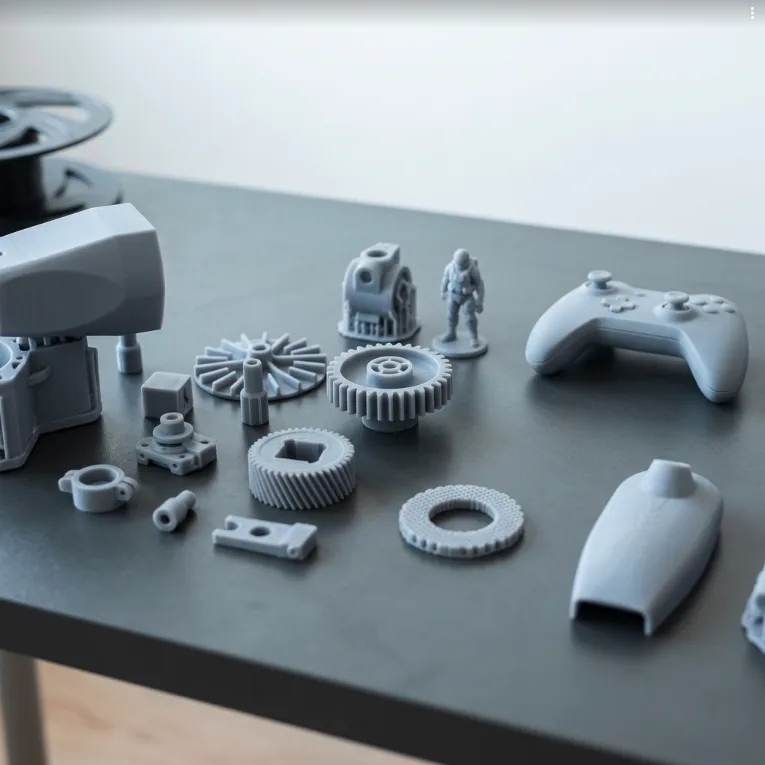

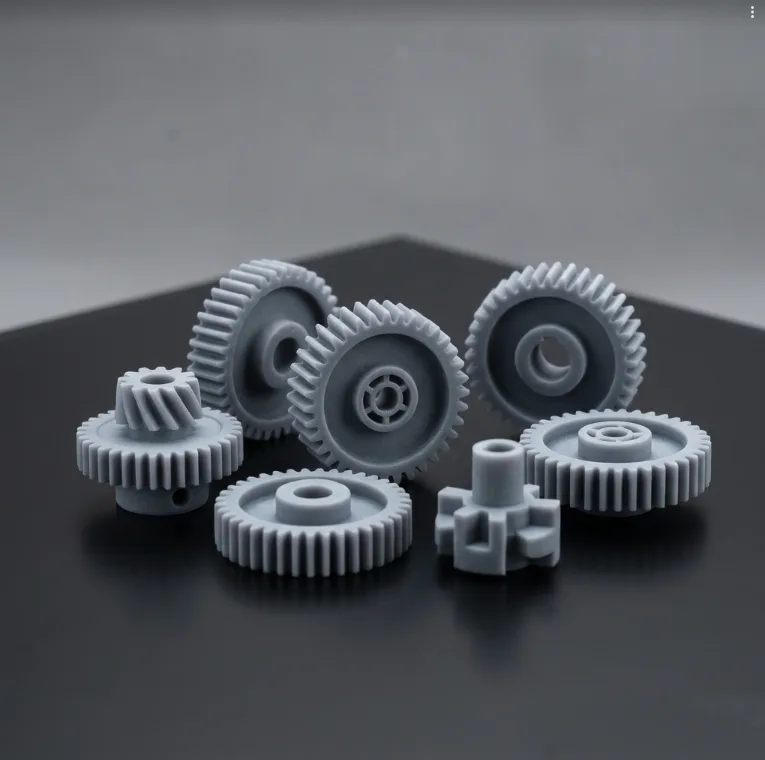

Standard Resin is ideal for parts where visual quality and surface detail are the primary requirements — miniatures, architectural models, dental mockups, product demos, and detailed functional prototypes where FDM surface texture is unacceptable.
Material Properties
| Property | Value | Standard / Method |
|---|---|---|
| Tensile Strength | 36–53 MPa | ISO 527 |
| Flexural Strength | 59–70 MPa | ISO 178 |
| Elongation at Break | ~14.2% | ISO 527 |
| Shore Hardness | 79D – 84D | ISO 868 |
| Impact Strength | Moderate (brittle vs Tough Resin) | — |
Values are typical for cured specimens. Actual results depend on exposure settings, layer height, and post-cure duration.
| Property | Value | Test Method |
|---|---|---|
| Density | ~1.195 g/cm³ | ISO 1183 |
| Volume Shrinkage | ~7.1% | — |
| Viscosity (25°C) | 150–200 mPa·s | — |
| UV Wavelength | 405 nm | — |
| Layer Height | 0.05–0.2 mm | — |
| Post-Cure | UV curing required | — |
| Property | Value |
|---|---|
| Chemical Family | Acrylate-based photopolymer |
| Odour | Mild (during printing, ventilated environment) |
| Solubility | Insoluble when cured |
| Chemical Resistance | Moderate (avoid prolonged solvent contact) |
| Flammability | Resin: flammable. Cured part: non-flammable |
| Cleaning Agent | Isopropyl alcohol (IPA) or ethanol |
| UV Sensitivity | Sensitive to UV before curing; stable after post-cure |
Performance Ratings
Available Colours
✦ 1 stock colour (Standard Grey). Contact us for custom colour requirements.
Design Guidelines for Standard Resin
Standard Resin is ideal for display models, miniatures, and visual prototypes. For parts needing toughness or flex, Tough Resin is recommended. For optical clarity or light transmission, Clear Resin is available. For large structural parts, our FDM service with PLA or ABS is better suited.
